mrptでDepth画像を取得する
訳あって懲りずにmrptいじくってます。

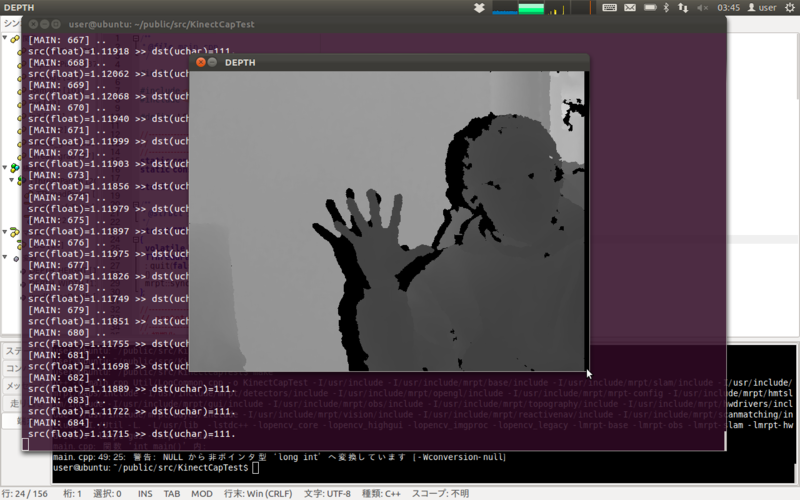

KinectのDepthデータをOpenCVで扱いたいと思って、いろいろ試してみましたが、うまくいかなくて、結局mrptで書いたのが動いたのでソースコードを載せておきます。
首動かせるよ、みたいなソースコード書いてありますが、動かないのであしからず。
環境
ソースコード
/** * @file main.cpp */ #include "LogCommon.h" #include <opencv2/opencv.hpp> #include <mrpt/hwdrivers.h> #define LOG INF_LOG // Log Utiliry Macro. //--------------------------------------------------------------- // constant //--------------------------------------------------------------- static const int DEPTH_WIDTH = 640; static const int DEPTH_HEIGHT = 480; static const double MAX_TILT = 30.0; static const double MIN_TILT = -30.0; static const char* wndNameDepth = "DEPTH"; //--------------------------------------------------------------- // definition //--------------------------------------------------------------- struct TThreadParam { TThreadParam() : bQuit(false), dTiltDeg(0.0), iKeyPushed(0) {} volatile bool bQuit; volatile double dTiltDeg; volatile int iKeyPushed; mrpt::synch::CThreadSafeVariable<mrpt::slam::CObservation3DRangeScanPtr> pObsSafeData; }; //--------------------------------------------------------------- // prototype //--------------------------------------------------------------- // Initialize int init(); // Capture Depth void thread_grab(TThreadParam& pThParam); // Point Cloud To Image long ToImage(const mrpt::slam::CObservation3DRangeScanPtr p3dData, cv::Mat& depthImage); // Depth To Pixel long DepthToPixel(float src, unsigned char& dst); // Main Procedure int main(void) { init(); // Create Thread of Capture TThreadParam thParam; mrpt::system::TThreadHandle threadHandle = mrpt::system::createThreadRef( thread_grab, thParam ); // Init Window cv::Mat depthImage( DEPTH_HEIGHT, DEPTH_WIDTH, CV_8U ); // Main Loop. int mainCout = 0; while(!thParam.bQuit){ // Retrieve Data. mrpt::slam::CObservation3DRangeScanPtr obs3dScanData = thParam.pObsSafeData.get(); if( (obs3dScanData == NULL) || (obs3dScanData->hasPoints3D == false) ){ continue; } // 3D Range to Depth Image. ToImage(obs3dScanData, depthImage); cv::imshow( wndNameDepth, depthImage ); int key = cv::waitKey(30); if(key == 'q'){ // QUIT. thParam.bQuit = true; break; }else if(key == 38){ // Up Key. LOG(" Input Up Key."); if(thParam.dTiltDeg <= MAX_TILT){ thParam.dTiltDeg += 2.0; LOG(" >> Up"); } }else if(key == 40){ // Down Key. LOG(" Input Down Key."); if(thParam.dTiltDeg <= MIN_TILT){ thParam.dTiltDeg -= 2.0; LOG(" >> Down"); } } thParam.iKeyPushed = key; mainCout++; } mrpt::system::joinThread(threadHandle); return 0; } void thread_grab(TThreadParam& pThParam) { // Kinect Controller Class mrpt::hwdrivers::CKinect cKinectSensor; cKinectSensor.initialize(); LOG(" Kinect Sensor initialize OK"); // Capture Loop. int cnt = 0; while(!pThParam.bQuit){ mrpt::slam::CObservation3DRangeScanPtr p3dRangeScan = mrpt::slam::CObservation3DRangeScan::Create(); bool bObsResult = false; bool bHardError = false; cKinectSensor.getNextObservation( *p3dRangeScan, bObsResult, bHardError); // Get Point Cloud. if(p3dRangeScan->hasPoints3D == true){ pThParam.pObsSafeData.set( p3dRangeScan ); }else{ LOG(" ERR: p3dRangeScan do NOT has Point 3D data."); } // Move Direction. if(pThParam.iKeyPushed != 0){ if( (pThParam.dTiltDeg <= MAX_TILT) && (pThParam.dTiltDeg >= MIN_TILT) ){ cKinectSensor.setTiltAngleDegrees( pThParam.dTiltDeg ); } pThParam.iKeyPushed = 0; } cnt++; } } long ToImage(const mrpt::slam::CObservation3DRangeScanPtr p3dData, cv::Mat& depthImage) { // Check Size. if( (p3dData->points3D_x.size() != p3dData->points3D_y.size() ) || (p3dData->points3D_y.size() != p3dData->points3D_z.size() ) ) { LOG(" ERR: ScanData has Invalid Data."); return -1; } if(p3dData->points3D_x.size() != (depthImage.cols * depthImage.rows)){ LOG(" ERR: ScanData size is Invalid. size=%d.", p3dData->points3D_x.size()); return -1; } // Loop for Each Pixels. for(int y=0; y<depthImage.rows; y++){ for(int x=0; x<depthImage.cols; x++){ const int idx = y * depthImage.cols + x; float srcVal = p3dData->points3D_x[ idx ]; DepthToPixel( srcVal, *(depthImage.ptr( y, x)) ); } } return 0; } long DepthToPixel(float src, unsigned char& dst) { static const double dCoeff = 100.0; // T.B.D. const int iVal = (int) (src * dCoeff); dst = (unsigned char)iVal; return 0; } int init() { setLogPath("test.log", true); // Initialize Log Utility. cv::namedWindow( wndNameDepth ); return 0; }
Makefile
LogCommon.cppはオレオレ用ログユーティリティです。無視してください。
CC = g++ -O SRC = main.cpp \ Util/LogCommon.cpp TGT = KinectCapTest USR_DIR = /usr INCPATH = $(USR_DIR)/include LIBPATH = $(USR_DIR)/lib OPT = -lstdc++ \ -lopencv_core -lopencv_highgui \ -lopencv_imgproc -lopencv_legacy \ -lmrpt-base \ -lmrpt-obs -lmrpt-slam \ -lmrpt-hwdrivers \ -lmrpt-gui -lmrpt-vision CFLAGS = -I$(INCPATH) \ -I$(INCPATH)/mrpt/base/include \ -I$(INCPATH)/mrpt/slam/include \ -I$(INCPATH)/mrpt/maps/include \ -I$(INCPATH)/mrpt/detectors/include \ -I$(INCPATH)/mrpt/opengl/include \ -I$(INCPATH)/mrpt/mrpt-config \ -I$(INCPATH)/mrpt/hmtslam/include \ -I$(INCPATH)/mrpt/gui/include \ -I$(INCPATH)/mrpt/obs/include \ -I$(INCPATH)/mrpt/topography/include \ -I$(INCPATH)/mrpt/hwdrivers/include \ -I$(INCPATH)/mrpt/bayes/include \ -I$(INCPATH)/mrpt/vision/include \ -I$(INCPATH)/mrpt/reactivenav/include \ -I$(INCPATH)/mrpt/scanmatching/include \ -I./Util LDFLAGS = -L. -L$(LIBPATH) all: $(CC) $(SRC) -o $(TGT) $(CFLAGS) $(LDFLAGS) $(OPT) clean: rm $(TGT)
